Carport Anatomy

Carport Glossary

Metal Carport Glossary - Exterior View

Carport Anatomy

End Wall

A wall that encloses the two non-weight bearing sides (referred to as “ends”).

Garage Door

A sheet metal door with a cylindrical tube at the top. They come in various sizes such as: 6’x7’, 8’x8’, 9’x8’, 10’x8’, 10’x10’, 12’x12’, & 14’x14’. Please note that all doors 10’x10’ or smaller, require 12” of headroom minimum to operate correctly. Larger doors sized at 12’x12’ & 14’x14’, require 24” of headroom minimum to operate correctly.

36" X 80" Walk-In Door

We offer two varieties of walk-in doors. The one shown is made of fiberglass and foam core with an aluminum frame. The door includes a 10”x10” window and a locking doorknob. (Deadbolts not available at this time)

Windows

Single pane windows that come in two sizes: 24” wide x 30” tall & 30” wide x 36” tall. They are aluminum frame painted white with a vinyl grid.

Side Wall

The wall that encloses the two weight bearing sides (referred to as “sides”).

Gable End

A decorative addition that can add both style and extra lateral stability to a carport.

Lean-To Conn. Point

A piece of trim outlines and protects the sharp edges around openings of our doors and windows. When viewed from the side it looks like the letter “L”.

Wainscot

A decorative touch to our design that changes the color of the bottom 3’ height of the enclosed sides.

Drop Panel

A panel that drops down the side of our carport, can be decorative or act as a guard against rainwater when used between a lean-to and its central structure.

J-Trim

A piece of trim, that when viewed from the side profile, is shaped like a J. It acts both as a decorative feature as well as a cover to any sharp edges that open on drop panel.

Leg Post

Refers to the vertical poles that bear the weight of the roof of our carports.

Base Rail

A brace that connects from the legs to the truss/bow of the carport. It adds additional strength to the structure and helps hold up the roof.

Lean-To

Lean-to sheds generally feature a single sloped roof that is connected to another building along its highest point. However, there are many options for customizing the size, layout, and shape of the final shed.

Metal Carport Glossary - Interior View

Carport Anatomy

Hat Channel

Pieces that are used to provide an anchoring point for our roof panels on vertical style carports. When viewed from the side, they have the shape of a top-hat.

End Wall

A wall that encloses the two non-weight bearing sides (referred to as “ends”).

End Wall Post

The vertical post frame members that help enclose a non-load-bearing end.

Windows

Single pane windows that come in two sizes: 24” wide x 30” tall & 30” wide x 36” tall. They are aluminum frame painted white with a vinyl grid.

Peak Brace

A brace located at the center peak of each bow that provides additional strength and structure to our units 12’-24’ in width.

Bow

Refers to the truss of our 12’-24’ wide structures, it is composed of a long piece of tubular steel bent into a bow shape (like a bow/arrow) and given additional strength by a peak brace.

Header Bar

Refers to the bars located above our garage doors, or larger openings that redistributes the weight of the roof to both sides of the opening so that we can enter through a space a “leg” would normally be placed.

Garage Doors

A sheet metal door with a cylindrical tube at the top. They come in various sizes such as: 6’x7’, 8’x8’, 9’x8’, 10’x8’, 10’x10’, 12’x12’, & 14’x14’. Please note that all doors 10’x10’ or smaller, require 12” of headroom minimum to operate correctly. Larger doors sized at 12’x12’ & 14’x14’, require 24” of headroom minimum to operate correctly.

Trim Cut (45°)

A decorative feature that gives the top openings a “softer” corner consisting of four forty five degree angles opposed to two ninety degree angles, it is also referred to as a “Dutch opening” .

L Trim

A piece of trim outlines and protects the sharp edges around openings of our doors and windows. When viewed from the side it looks like the letter “L”.

Garage Door Track

A component of the garage door assembly which allows the sheet metal door to roll up and down. It keeps the door square as it rises and lowers.

Leg Brace

A brace that connects from the legs to the truss/bow of the carport. It adds additional strength to the structure and helps hold up the roof.

Walk-In Door

We offer two varieties of walk-in doors. The one shown is made of fiberglass and foam core with an aluminum frame. The door includes a 10”x10” window and a locking doorknob. (Deadbolts not available at this time)

Insulation

A barrier which inhibits the migration of heat, moisture, and sound into and out of the building. Eagle Carports offers two high quality insulation options: Double Bubble Foil & 2” fiberglass. Adding insulation to a building is not only ideal for metal structures, but it is also energy efficient which can lead to saving money on utility costs.

Leg

Refers to the vertical poles that bear the weight of the roof of our carports.

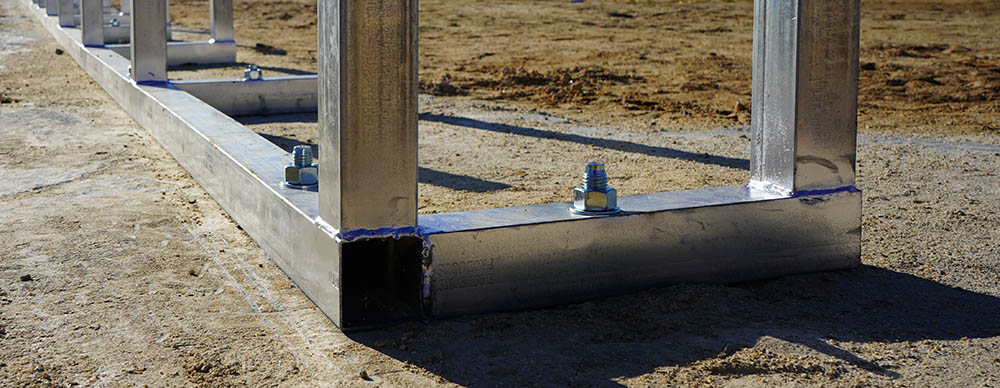

Base Rail

Refers to the horizontal rail that our legs slot into, you can think of them as the “feet” to our legs.

Asphalt Anchor

Used in asphalt installations only. They have 4 fins that when driven into the ground hold the anchor in keeping the building secure during high wind conditions.
Base RailRefers to the horizontal rail that our legs slot into, you can think of them as the “feet” of our legs.
BowRefers to the truss of our 12’-24’ wide structures, it is composed of a long piece of tubular steel bent into a bow shape (like a bow/arrow) and given additional strength by a peak brace.
Drop PanelA panel that drops down the side of our carport, can be decorative or act as a guard against rainwater when used between a lean-to and its central structure.
End WallA wall that encloses the two non-weight bearing sides (referred to as “ends”).
Gable EndA decorative addition that can add both style and extra lateral stability to a carport.
Hat ChannelPieces that are used to provide an anchoring point for our roof panels on vertical-style
carports. When viewed from the side, they have the shape of a top hat.
Header BarRefers to the bars located above our garage doors, or larger openings that redistribute the weight of the roof to both sides of the opening so that we can enter through a space a “leg” would normally be placed.
J-TrimA piece of trim, that when viewed from the side profile, is shaped like a J. It acts both as a decorative feature as well as a cover to any sharp edges that open on the drop panel.
L-TrimA piece of trim outlines and protects the sharp edges around the openings of our doors and windows. When viewed from the side it looks like the letter “L”.
Lean-ToAdditions that can add up to 15’ additional width to a structure that has one set of legs to the outside and connects to a central carport that would supply its other pair of legs.
LegRefers to the vertical poles that bear the weight of the roof of our carports.
Leg BraceA brace that connects from the legs to the truss/bow of the carport. It adds additional
strength to the structure and helps hold up the roof.
Peak BraceA brace that provides additional strength and structure to our units 12’-24’ in width.
Side WallThe wall that encloses the two weight-bearing sides (referred to as “sides”).
WainscotA decorative touch to our design that changes the color of the bottom 3’ height of the enclosed sides.
45-Degree Trim KitA decorative feature that gives the top openings a “softer” corner consisting of four forty-five-degree angles as opposed to two ninety-degree angles, it is also referred to as a “Dutch opening”.

Roof Styles

Carport Anatomy
Carport Anatomy
Carport Anatomy

Vertical Style Roof

Vertical Roof Style is the most durable as well as the most traditional style of metal roof. Its vertically aligned panels allows for better water and debris shed. Its construction with hat-channel and paneling on top make this the strongest roof style we offer.

Carport Anatomy
Carport Anatomy

A-Frame Roof Style (Boxed EAVE)

Engineered to provide the coverage you need while maintaining a more traditional looking roof line to compliment your property/home. The roofing panels run from front to back like our regular style.

Carport Anatomy
Carport Anatomy

Regular Roof Style (Arch)

The original style offered in the carport industry, this is where it all started! Featuring rounded eves, this is our most economical roof style available. The roofing panels run front to back.

Insulation

Metal Building Insulation

Carport Anatomy

Eagle Carports offers two high quality insulation options to create a more functional, multi-purpose garage space that can benefit anybody. Adding insulation to a building is not only ideal for workshops, man-caves and recreational projects, but it is also energy efficient which can lead to saving money on utility costs (ex: heating and air conditioning).

Other common benefits of adding insulation to any custom metal buildings include extra protection from moisture, humidity and rust. It also promotes noise reduction which lowers the echo inside the garage as well as reducing outside noise as well.

Carport Anatomy

Double Bubble Foil

Carport Anatomy

2" Fiberglass

Carport Anatomy

Insulation Costs Formula

ROOF (Vertical Only)

Add 2’ to width and multiply by length. Ex. 24’ wide x 26’ long 26 x 26 = 676 SF x $/per SF

SIDES:

Multiply leg height by length by 2. Ex. 26’ long x 10’ tall 10 x 26 = 260 x 2 = 520 sf x $/per

SF

ENDS: Add 1.5 to leg height, multiply by building width. Ex. 24’ wide x 10’ tall 11.5 x 24 = 276 x 2 = 552 sf x $/per SF

Note: Double Bubble Type (Moisture Barrier) insulation is typically cheaper than 2” Fiberglass insulation

Anchor Types

TYPEAPPLICATIONPLACEMENTSIZE
ASPHALT ANCHORFor installation on asphaltTypically spaced 10’ - 15’ apart30"
CONCRETE ANCHORFor installation on concreteTypically 6” away from 1 side of each leg6"
EARTH AUGER ANCHORFor installation of any unit on the ground, whether it be on soil, gravel, etc.Typically spaced 10’ - 15’ apart30"
REBAR ANCHORPins baserail in place during constructionTypically spaced 10’ apart30"
*If proper anchoring is not possible, building will not meet rating criteria.
Carport Anatomy

FLUSH MOUNT KIT

The flush mount kit allows you to use a concrete pad the same size as the building itself without extending beyond 2” or more.
Example: for a 20’x30’ building you would need
a 20’ x 30’ concrete pad.

Carport Anatomy

CONCRETE ANCHORS

Sometimes referred to as wedge anchors, contractors drill into the concrete and insert the anchor to fasten the building very securely to the concrete pad.

Rebar anchors hold the baserail in place

REBAR ANCHORS

Used in combination with every other anchor style except for concrete. Rebar anchors hold the baserail in place during construction to insure a sturdy installation.

Mobile Home Anchors

EARTH AUGER ANCHORS

Also known as Mobile Home Anchors
Used to secure the building in ground installations only.
They are double helical in design.

Carport Anatomy

ASPHALT ANCHORS

Used in asphalt installations only. They have 4 fins that when driven into the ground hold the anchor in keeping the building secure during high wind conditions.

Doors & Windows

Standard Garage Doors & Windows

Carport Anatomy

Standard Roll Up Garage Doors

Please note all roll up garage doors are manufactured by Asta Door Company.

Model #:281281281281281201201-HD
Size:6’X7’8’X8’9’X8’10’X8’10’X10’*12’X12’*14’X14’
Price$600$800$850$950$1200$2100$3000
*These doors include chain hoist.

STANDARD WALK-IN DOORS

MOBILE HOME DOOR ( 36’ X 80” )$400
9-LIGHT STEEL DOOR$700*
*Special Order item. Only available to install on cement surface

STANDARD WINDOWS

24” X 36’ WINDOW$200
30” X 36’ WINDOW$220
Note: All prices are based on October 1, 2022 pricing and are subject to change without notice.

CERTIFIED ROLL UP GARAGE DOORS

Carport Anatomy
Carport Anatomy
Carport Anatomy

A certified roll up garage door is similiar to a regular garage door with the exception of a few differences:

Hooks/Teeth: On the sides of the garage door, there are teeth/ hooks that slide inside the garage door track when rolling the door up and down. Whenever a strong wind breezes through, these “teeth” grip the inside of the track, preventing the garage door from being blown away.

Larger Track: The track on the sides of the garage door are typically larger to accomodate the “teeth” on the sides of the door.

Location Requirements: While we offer these doors as an option for some, there are many places where customers are required to have a certifed roll up garage door based on their location. These places include the coastal region along with Colorado, New Mexico, and any other area with high winds.

Noise: Where these certified garage doors are built slightly different, there is a possibility that these doors could be louder than a non-certified garage door. While typically the extra materials used to make these doors are a huge factor, some doors might have stronger springs.

Please note all roll up garage doors are manufactured by Asta Door Company.

MODEL #:283283283283283203203
SIZE:6’X7’8’X8’9’X8’10’X8’10’X10’*12’X12’*14’X14’
PRICE:N/A$1100$1200$1300$1400$3100$4000
*These doors include chain hoist.

CERTIFIED WALK-IN DOORS PRICES

Carport Anatomy

A certified garage door is similar to a regular garage door with the exception of a few differences:

Hooks/Teeth: On the sides of the garage door, there are teeth/hooks that slide inside the garage door track when rolling the door up and down. Whenever a strong wind breezes through, these “teeth” grip the inside of the track, preventing the garage door from being blown away.

Larger Track: The tracks on the sides of the garage door are typically larger to accommodate the “teeth” on the sides of the door.

Location Requirements: While we offer these doors as an option for some, there are many places where customers are required to have a certified garage door based on their location. These places include the coastal region along with Colorado, New Mexico, and any other area with high winds.

Noise: Where these certified garage doors are built slightly different, there is a possibility that these doors could be louder than a non-certified garage door. While typically the extra materials used to make these doors are a huge factor, some doors might have stronger springs.

Please note all roll up garage doors are manufactured by Asta Door Company.

MOBILE HOME DOOR ( 36’ X 80” )$500
9-LIGHT STEEL DOORN/A
Carport Anatomy

CERTIFIED WINDOWS

A certified window is similiar to a regular window with the exception of a few differences:

Stronger/Heavier Middle Bar: In the center of the window contains a bar that is both stronger and heavier than a non-certified window. Where more material is used to create this bar, it is also thicker as well. Please note that even though this window is built to resist against stronger winds, it is non-impact resistant.

The Sticker: Our certified windows are visually identical to our non-certified doors. However, our certified doors do come with a sticker, indicating that it is certified.

Note: Non-Impact Resistant windows will shatter if an object or force hit it.

24” X 36’ WINDOW$220
9-LIGHT STEEL DOOR$240
Note: All prices are based on October 1, 2022 pricing and are subject to change without notice.

Carport Accessories

Carport Anatomy

OFFICIAL EAGLE EMBLEM

Customize your building with the all-American eagle emblem. This emblem gives your building a more unique look and adds just the right finishing touch.

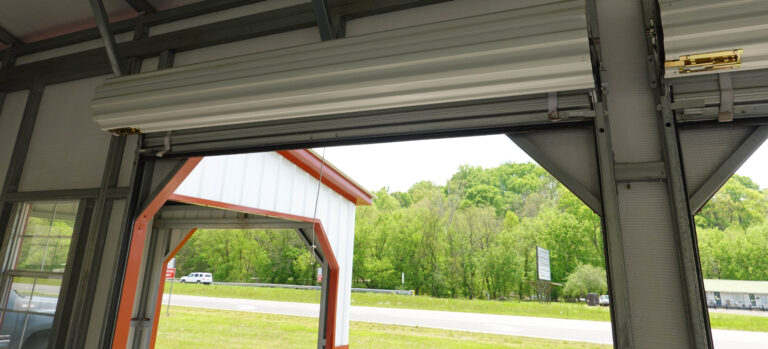

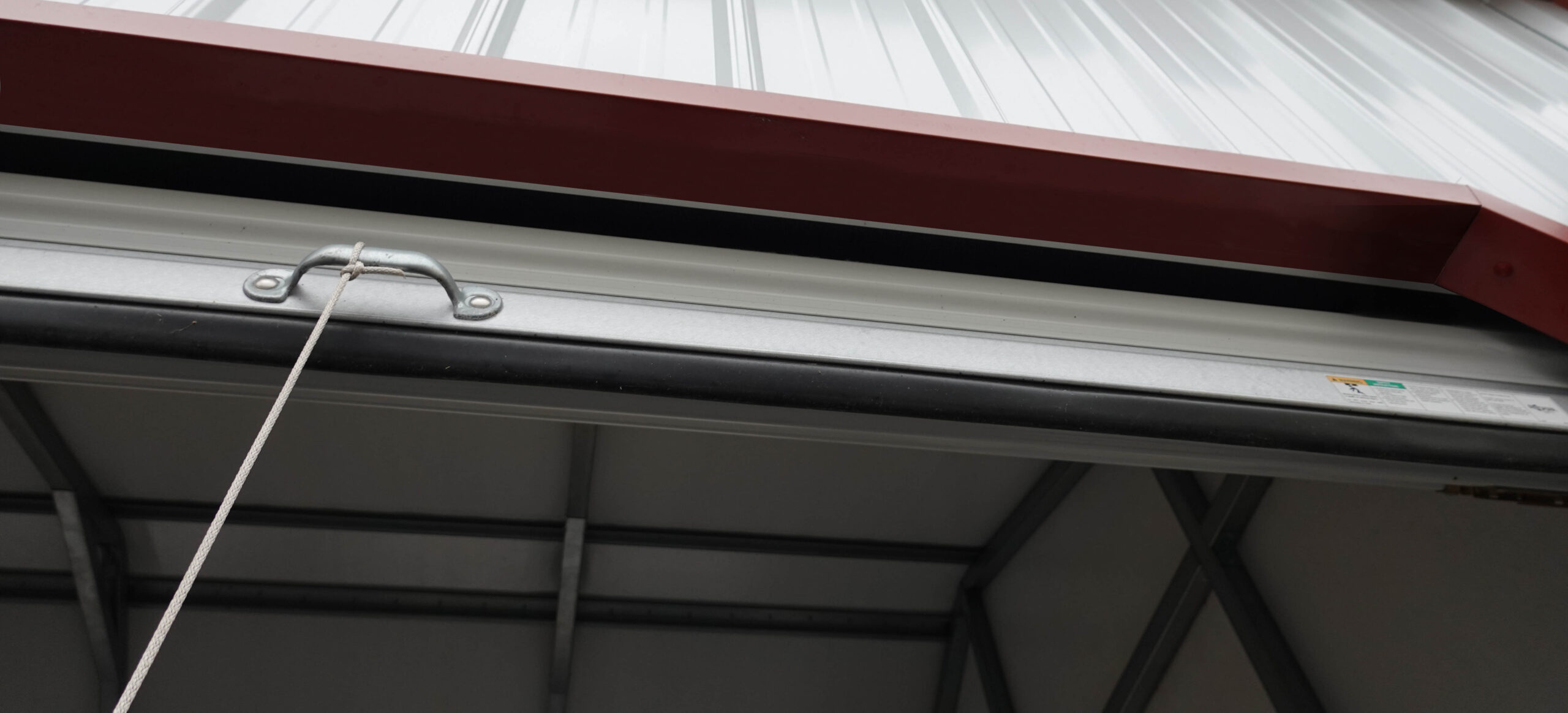

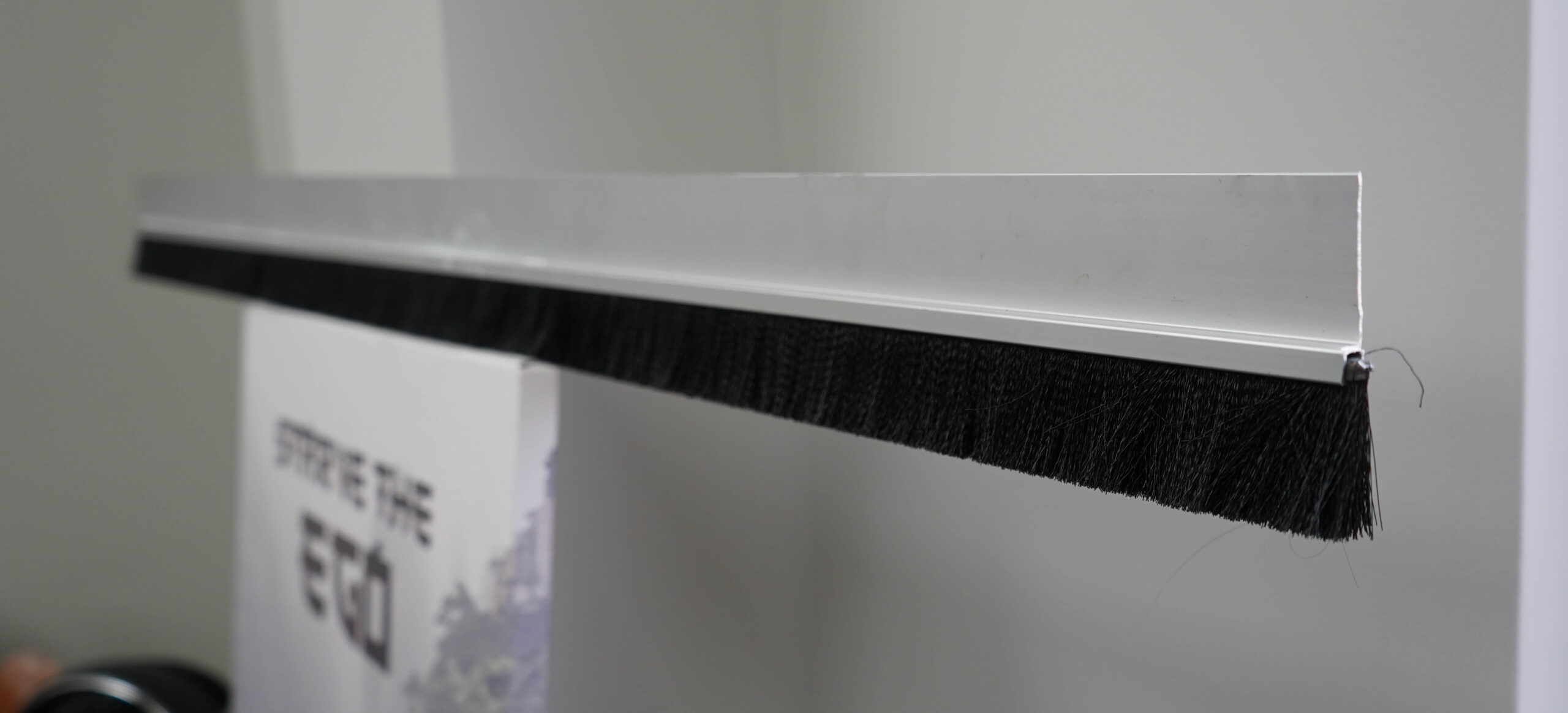

GARAGE DOOR BRUSH GUARD

The garage door brush guard (also referred to as a “Header Brush Seal”) is used primarily to keep out birds and other wildlife from entering your building via space above your garage door.

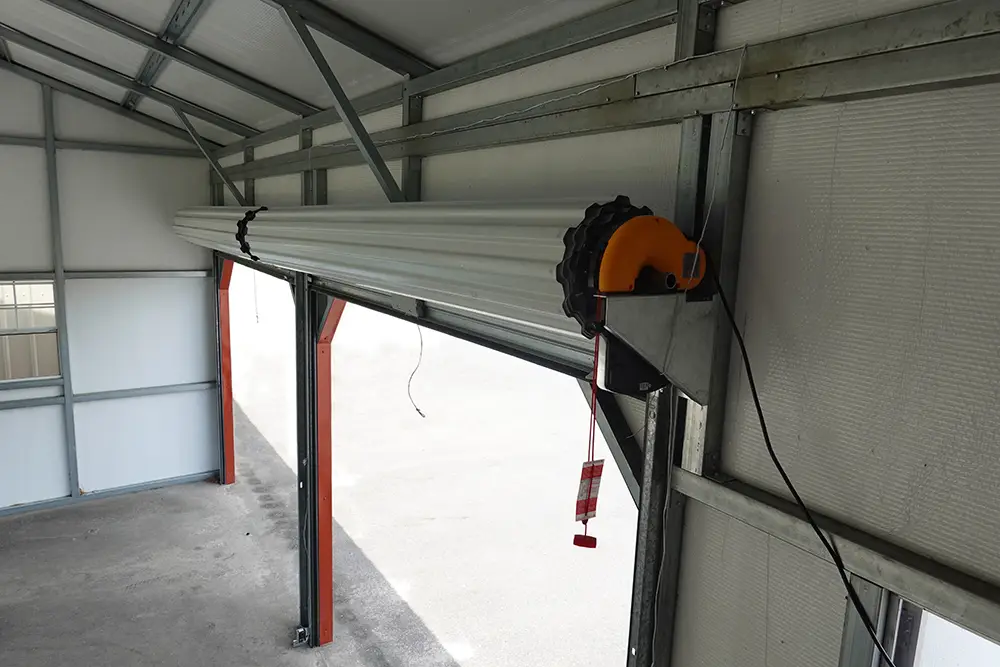

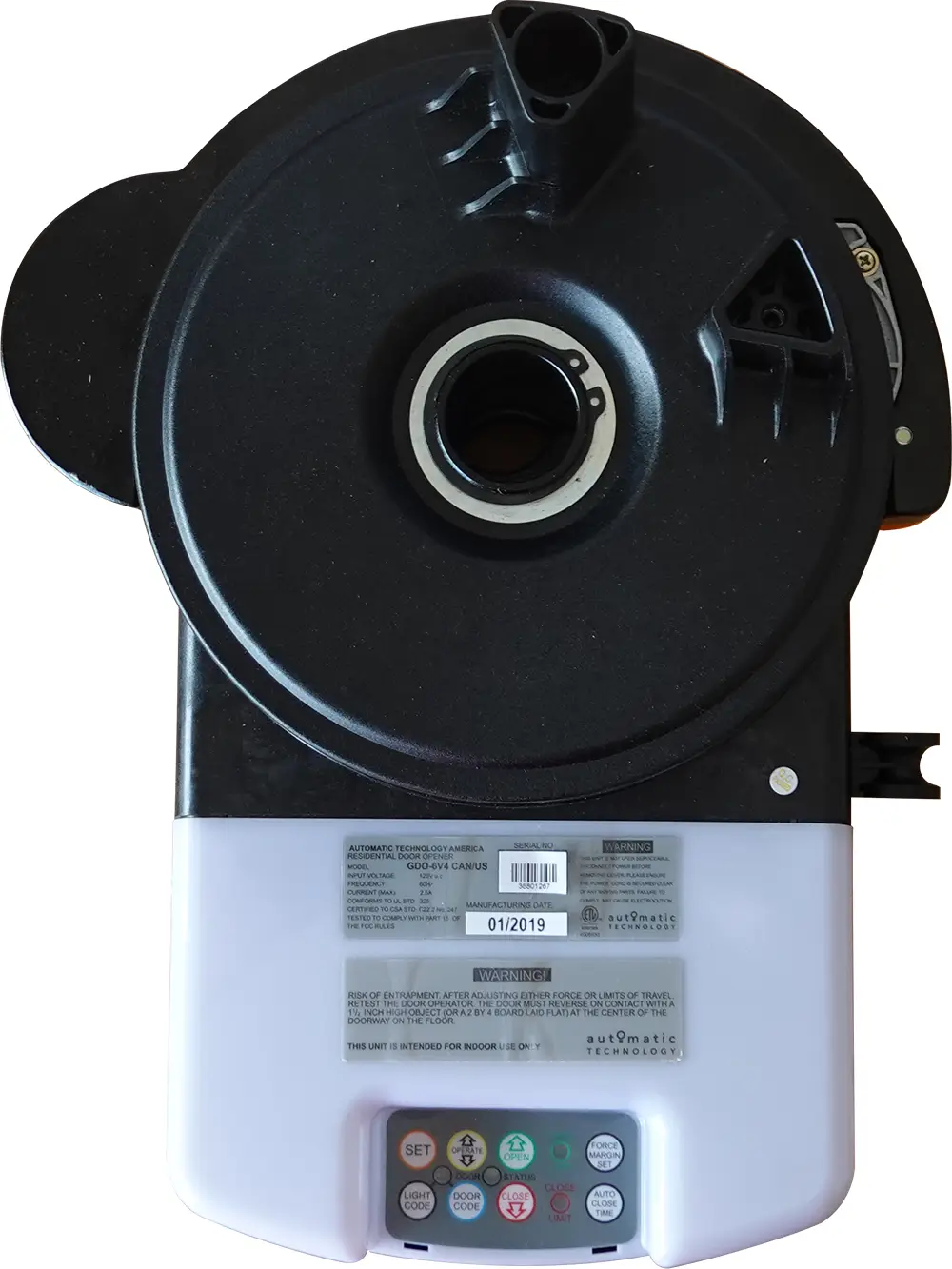

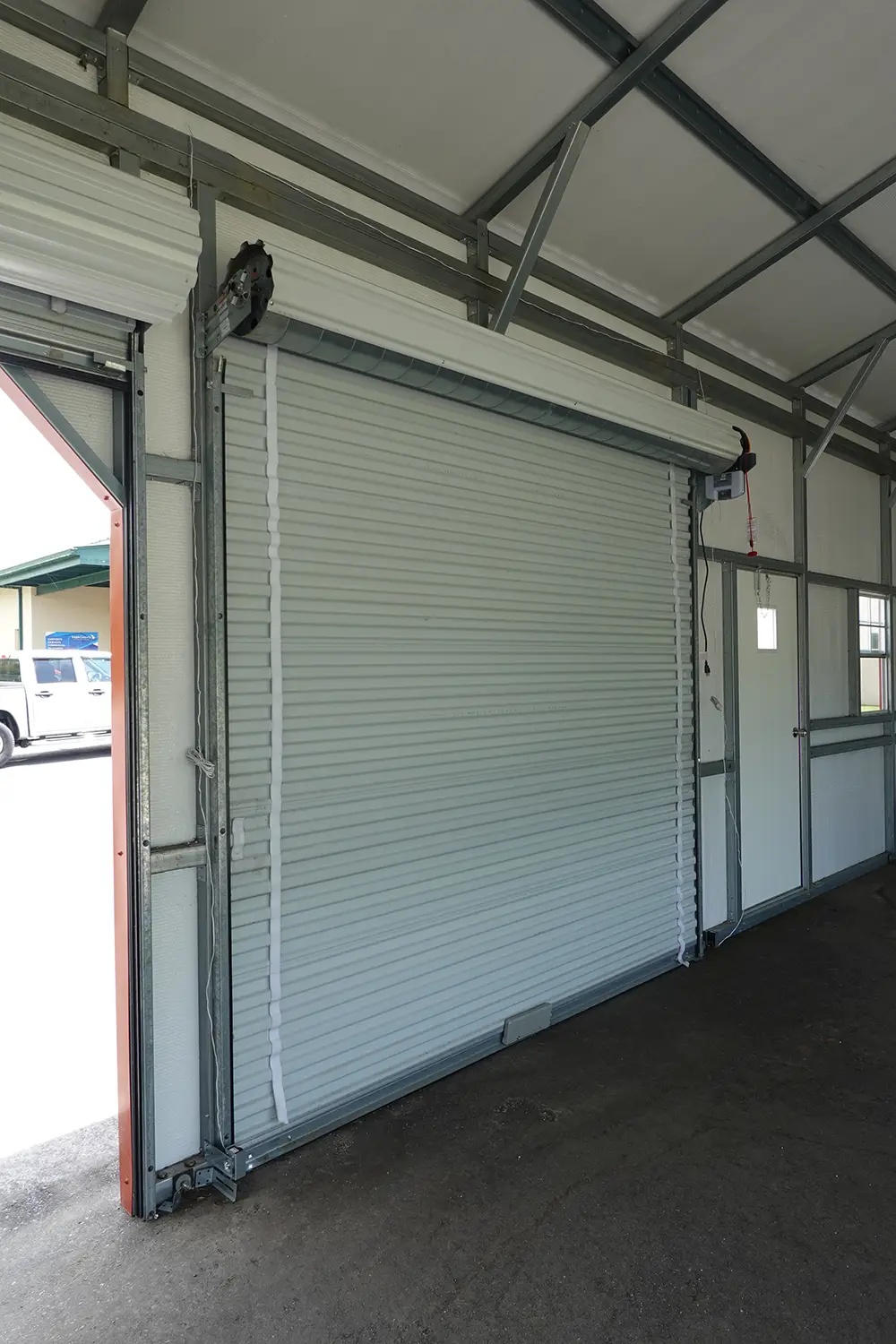

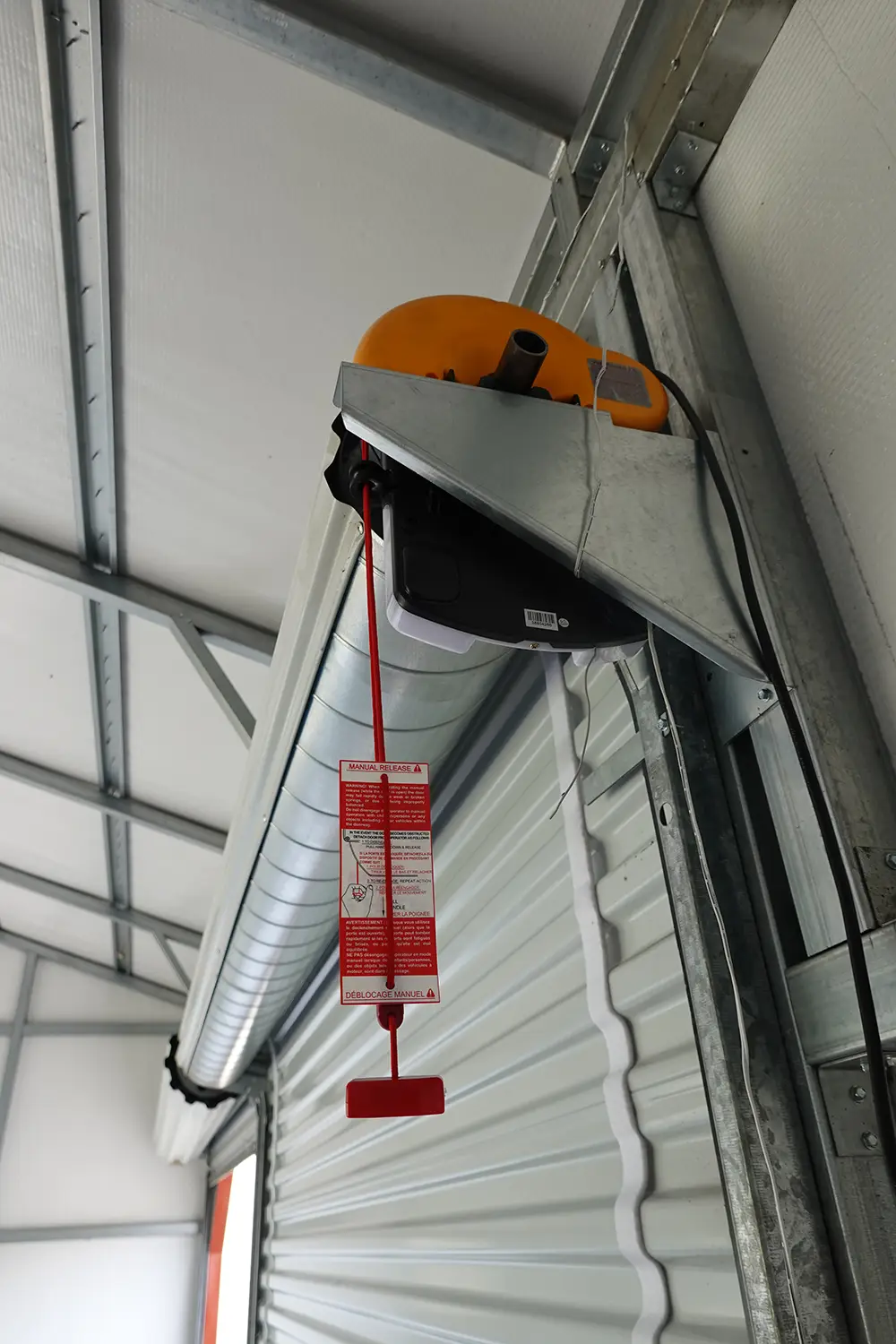

ELECTRIC GARAGE DOOR OPENER KIT

Eagle Carports is now offering a new, more secure feature to our garage doors. Enjoy the convenience of opening and closing your garage doors without leaving your vehicle!

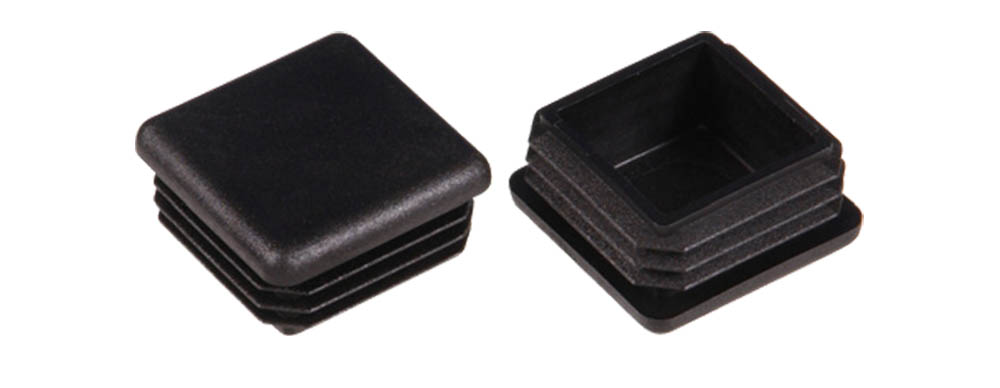

BASE RAIL END CAPS

FINISHED & TRIMMED APPEARANCE • EXTENDS LIFE OF BASE RAIL • REDUCES MOISTURE • KEEP OUT PESTS

COLORED SCREWS

We now offer colored screws to match panels at only 5% roof/sides/ends cost.
Note: Only available in select states.
